SPECS

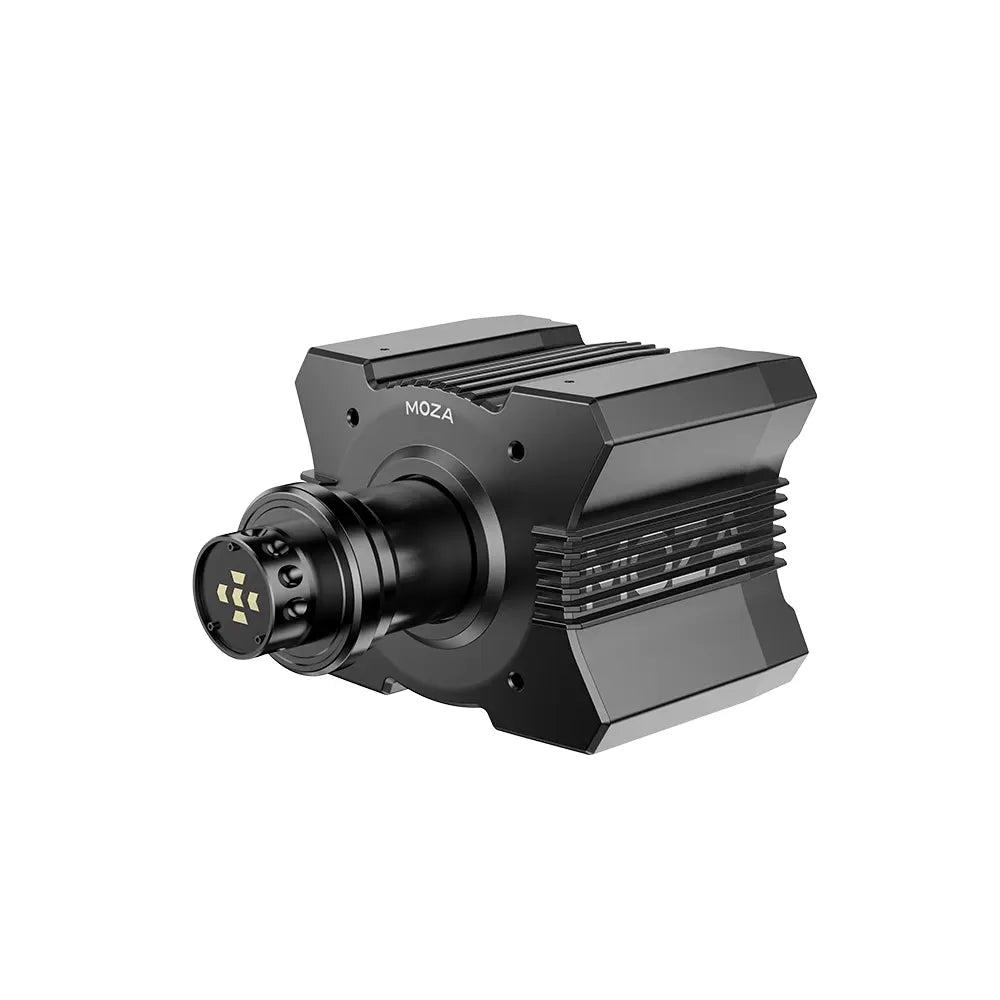

MOZA R9 V2 Wheel Base
  • Platform: PC
  • FFB Drive System: Direct Drive
  • Max Wheel Rotation: Limitless
  • Housing Material: Aviation Grade Aluminum Alloy
  • Color: Black
  • Peak Torque: 9 N·m
  • Peak Power: 180W
  • Input VoltageInput Voltage: 110V~220V AC —>36V DC
  • USB Refresh Rate: 1000Hz
  • Wheel Base Indicator Light: Supported
  • App Functionality: Supported
  • Quick Release: MOZA Quick Release
  • Connection Port: Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
  • Accessories: User manual, Warranty card, Power supply, USB cable, Toolkit
  • Mounting: 4 holes on the bottom; exclusive holder that supports angle adjustment and side fix; Table clamp
  • Table Clamp: Optional
  • Side Mounting: Optional
  • Emergency Stop Switch: Optional
  • Firmware Updating: Applicable
  • Size (L x W x H) (mm): 240x157x124

WHAT'S INBOX

  • R9 V2 DD Wheelbase

  • Power Supply

  • Toolkit

  • USB Cable

  • User Manual

  • Warranty Card

FAQs

Still have questions? Get help from our expert.

What’s the Difference Between the MOZA R9 V2 and R9 V3?
  • Encoder Precision: The R9 V2 uses a 15-bit encoder (32,768 steps), while the R9 V3 is upgraded to a 21-bit magnetic encoder (over 2 million steps), offering higher precision and smoother input.
  • Cooling System: The R9 V2 has a standard temperature control design. The R9 V3 adds intelligent monitoring and an active cooling system for improved stability during long sessions.
  • Force Feedback Algorithm: The R9 V3 is equipped with an upgraded processor and MOZA’s NexGen 4.0 force feedback algorithm, delivering more refined and responsive feedback compared to the V2.
  • Performance Specs: Both models share the same maximum torque (9 N·m), peak power (180 W), and 1000 Hz refresh rate.
What platforms is the R9 V2 compatible with?

The R9 V2 is fully compatible with PC (Windows). It works seamlessly with all major sim racing titles, such as iRacing, Assetto Corsa / Competizione, F1 Series, rFactor 2, and more. (Note: Console support is not available.)

What is the maximum torque output of the R9 V2?

The R9 V2 delivers a peak torque of 9 N·m, offering strong and highly responsive direct drive force feedback suitable for a wide range of racing disciplines.

How does the quick release system work?

The R9 V2 features MOZA’s all-aluminum quick release system, allowing you to swap steering wheels in seconds without tools, while maintaining a rock-solid connection during racing.

What software is used to configure the R9 V2?

The R9 V2 is managed through MOZA Pit House software, where you can adjust force feedback intensity, steering angle, pedal curves, and save custom profiles for different games.
