MOZA CRP2 Load Cell Pedals (Throttle+Brake)

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

Name: MOZA CRP2 Load Cell Pedals (Throttle+Brake)
Brand: MOZA Racing
SKU: T03P020001A
Price: 399.00 GBP
Availability: InStock

£399.00

Tax included.Shipping calculated at checkout.

Introducing the MOZA CRP2 Load Cell Pedals—crafted from CNC aerospace-grade aluminum with a carbon fiber heel plate, these pedals offer unmatched precision and durability. Featuring a 200kg load cell sensor and a 15-bit high-precision angle sensor, the CRP2 delivers accurate and responsive brake feel with up to 1,764 customization options, accommodating everything from road cars to F1-level performance. The tool-free adjustment system ensures quick, effortless tuning, while its sleek, minimalist design integrates seamlessly into any sim racing setup. With support for inverted mounting and full compatibility with PC and Xbox systems, the CRP2 pedals are engineered for serious sim racers seeking professional-grade performance.

Overview >

Product variants

Model: CRP2 Pedals (throttle+brake)

Upgrade for the Ultimate Simulation

MOZA mBooster Active Pedals

£799.00

Performance Kit for CRP2

£19.90

CRP2 Full Length Throttle Replacement Plate

£25.90

In stock! Ships within 7 business days.

14-Day Returns Policy

Up to 24-Month Warranty Protection

Fast Shipping from UK Warehouse

Pairs well with

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

In stock! Ships within 7 business days.

£399.00

At a Glance

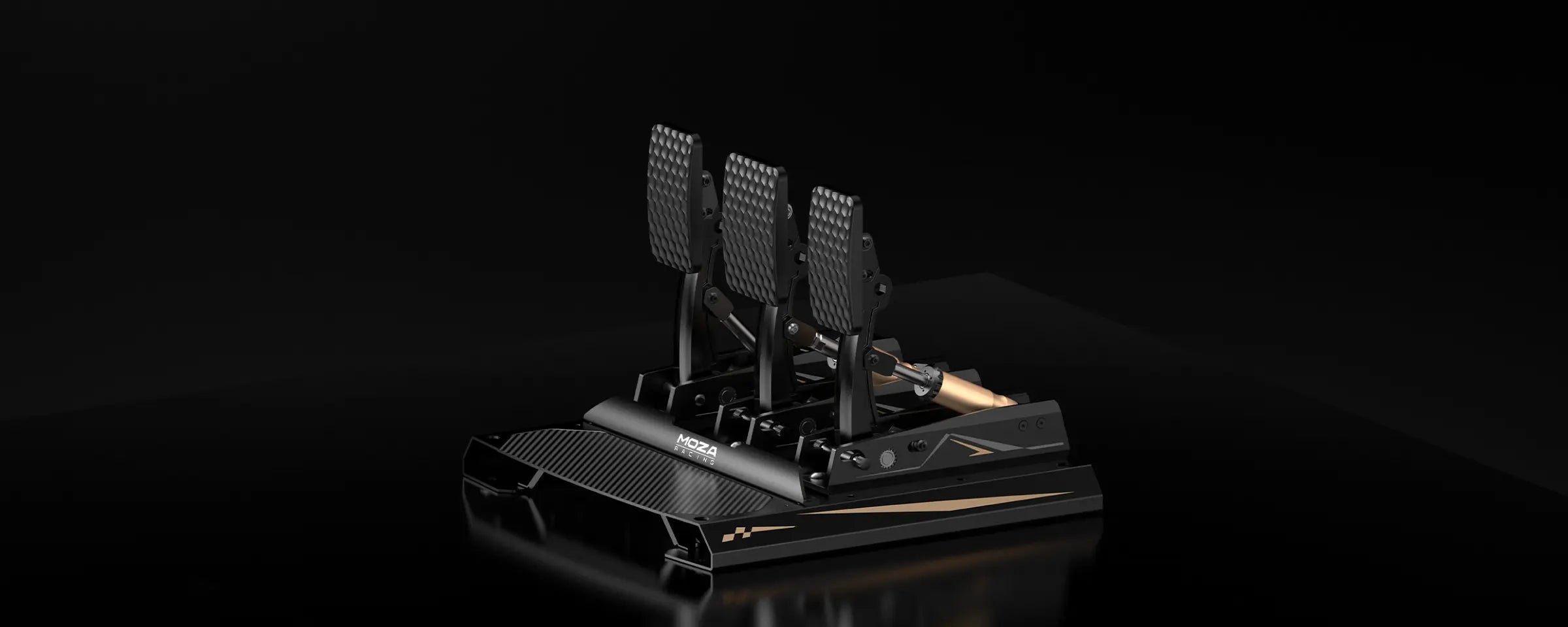

Uncompromising Precision. Built for Pro Simulation.

Engineered with a 200KG load cell, aerospace-grade aluminum, and over 125 pedal feel combinations, the CRP2 offers unmatched realism, durability, and customization. Designed for serious sim racers who demand absolute control.

CNC Aerospace-Grade Aluminum Construction

Crafted with CNC-machined aerospace aluminum and a high-strength steel base, the CRP2 ensures unmatched durability and a premium racing-grade finish.

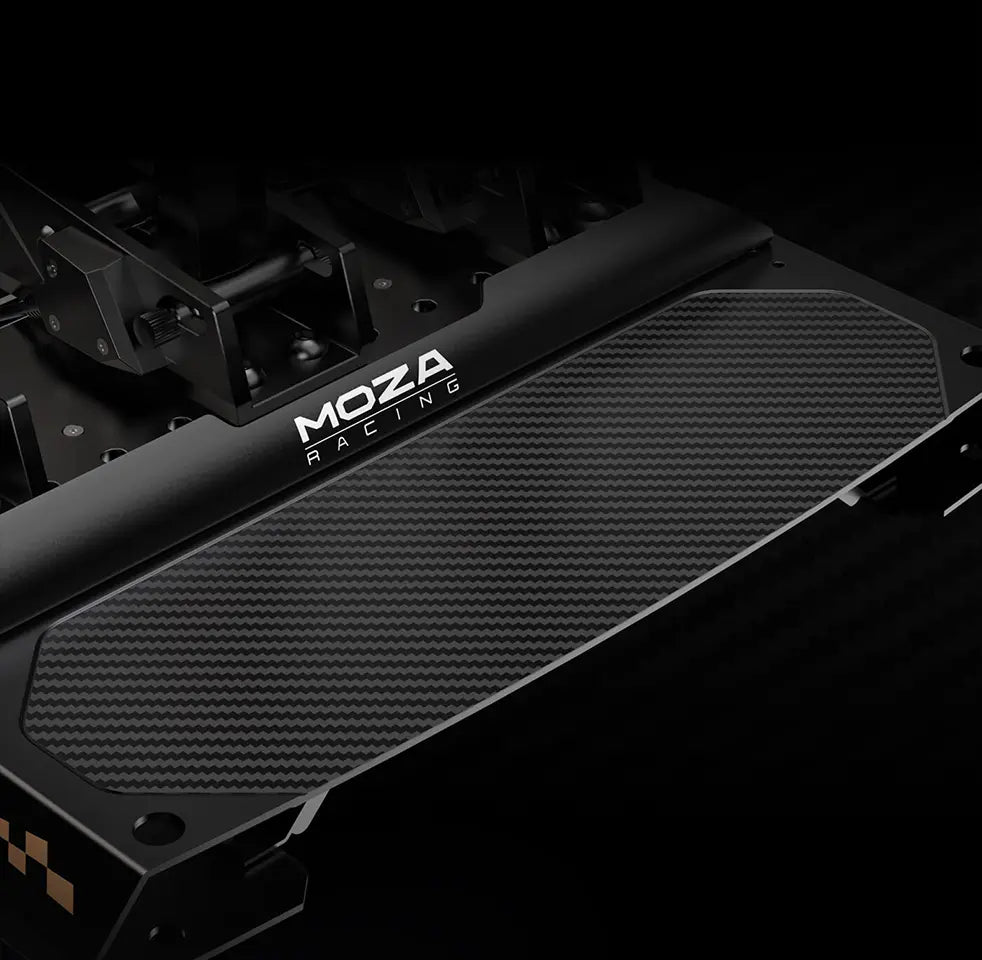

Carbon Fiber Heel Plate

Crafted from 3K twill carbon fiber, the heel plate adds a refined, sporty look while offering just the right amount of grip for precise heel positioning during high-intensity racing.

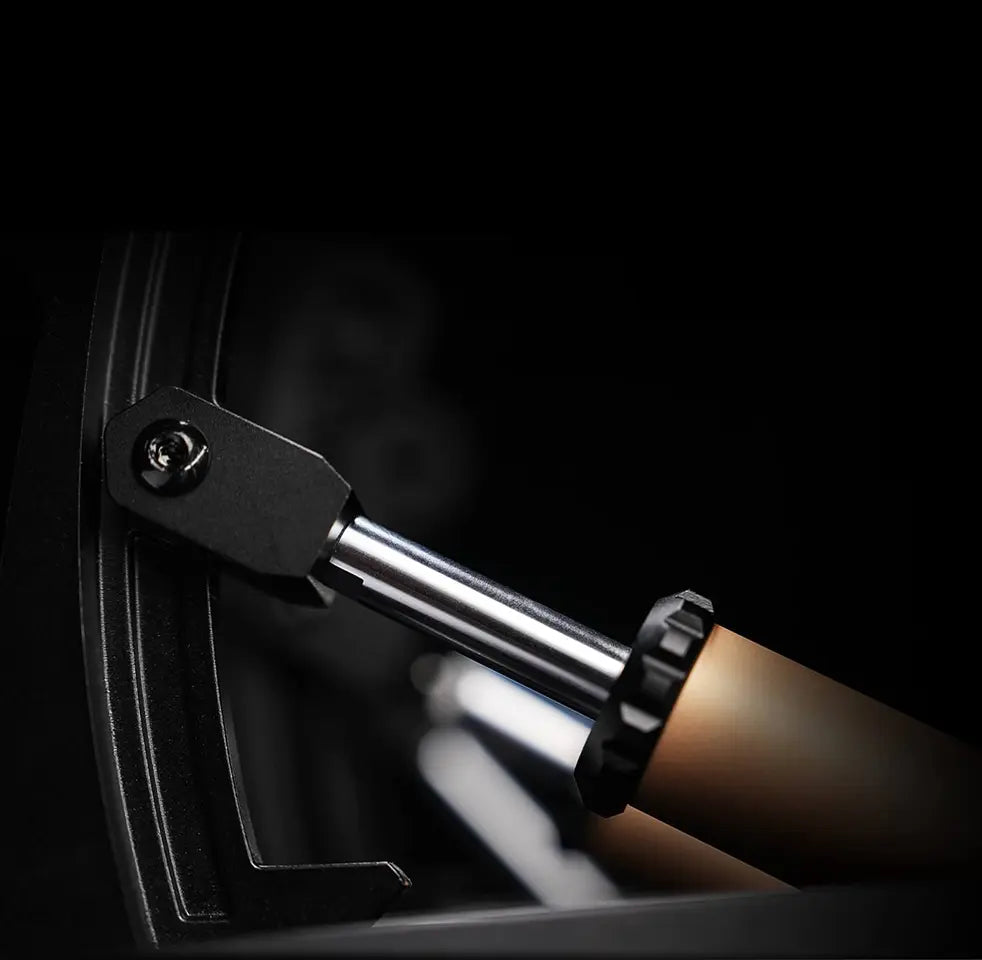

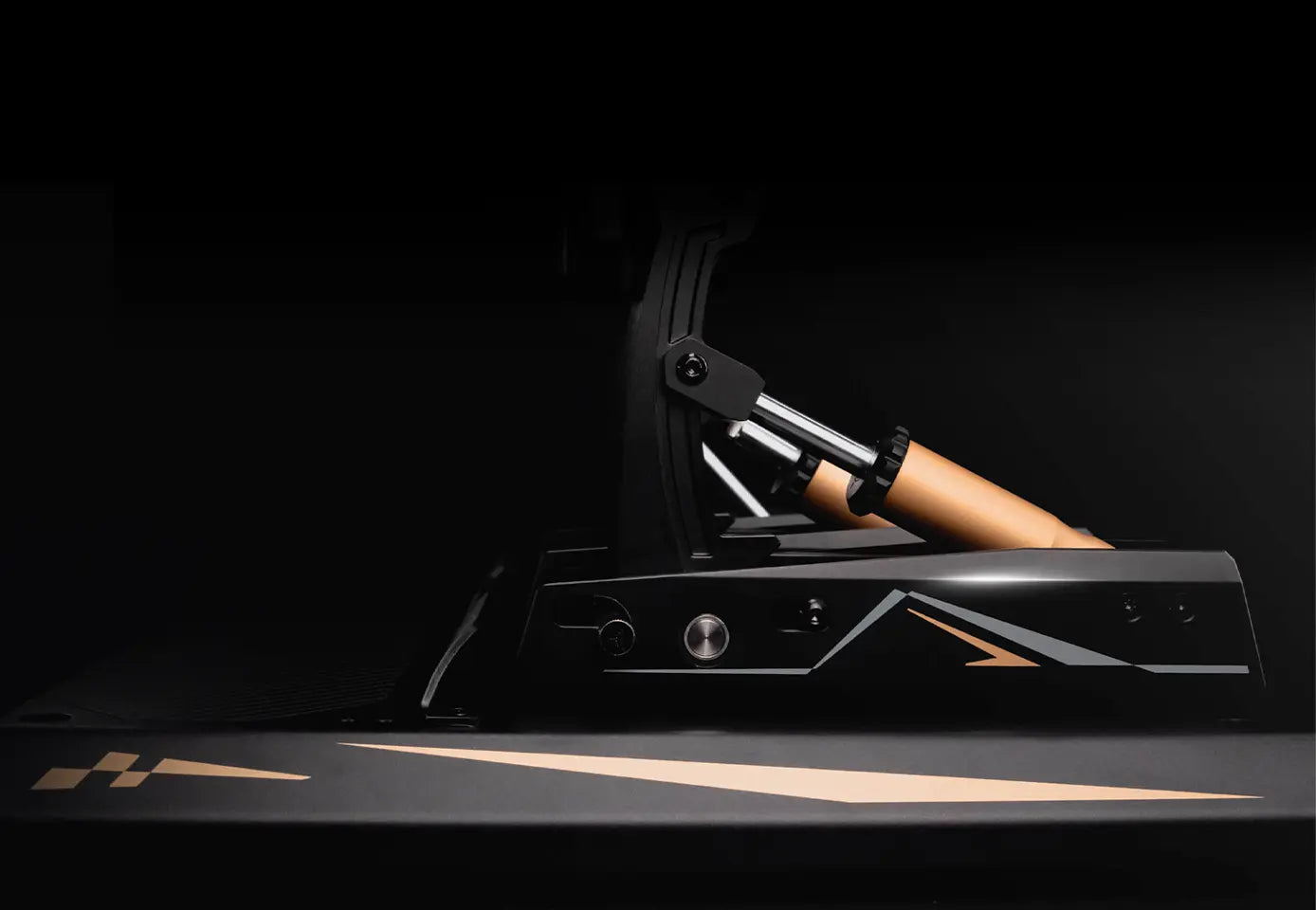

Smooth, Silent, and Incredibly Responsive

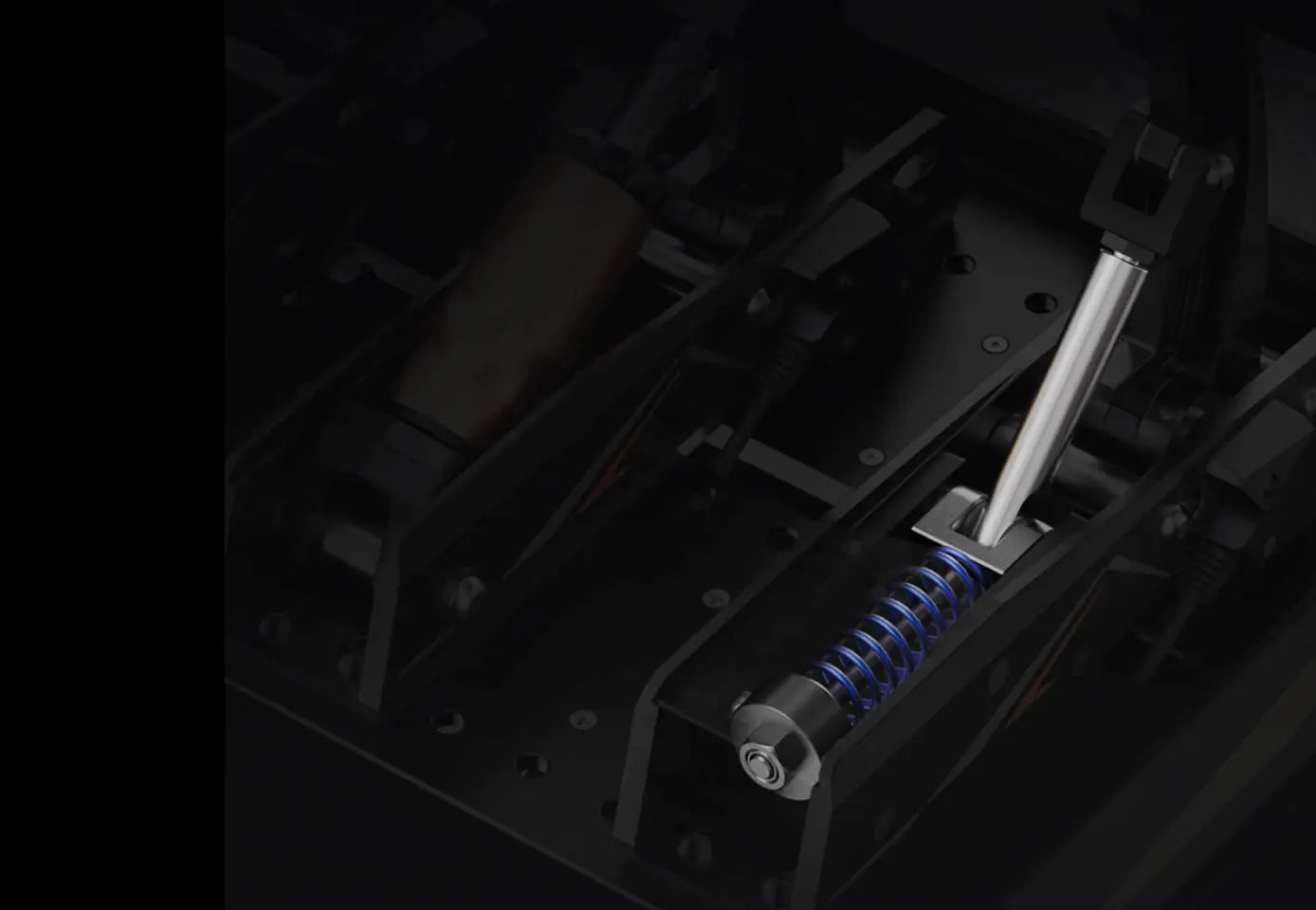

Engineered with polished steel shafts and internal damping, the CRP2 delivers a quiet, smooth, and highly responsive experience — even during intense racing sessions.

Three-Stage Adjustable Clutch

Simulates a high-performance clutch with a progressive three-stage feel: light initial travel, firm mid-range pressure, and a sharp final release. Fully tunable with dual springs and continuous resistance adjustment.

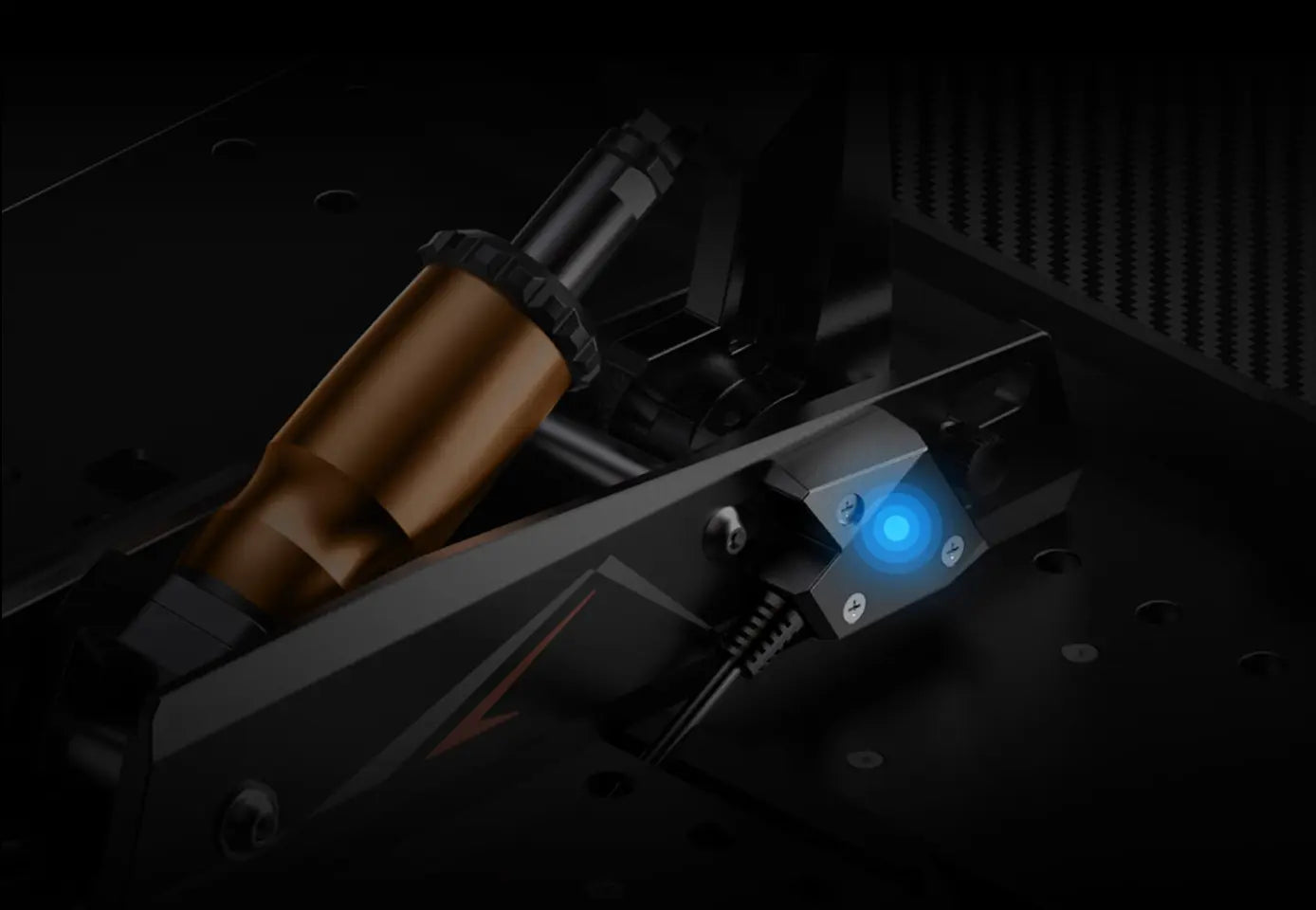

Sensor Fusion with 15-bit Angle Resolution

Combines a 15-bit magnetic angle sensor and load cell with a patented fusion algorithm for ultra-precise braking, leveraging muscle memory and pressure sensitivity.

200KG Load Cell for Pro-Level Braking

Equipped with a rare 200KG load cell sensor, the CRP2 delivers ultra-realistic braking force, accurately replicating the full range of pressure in real race cars.

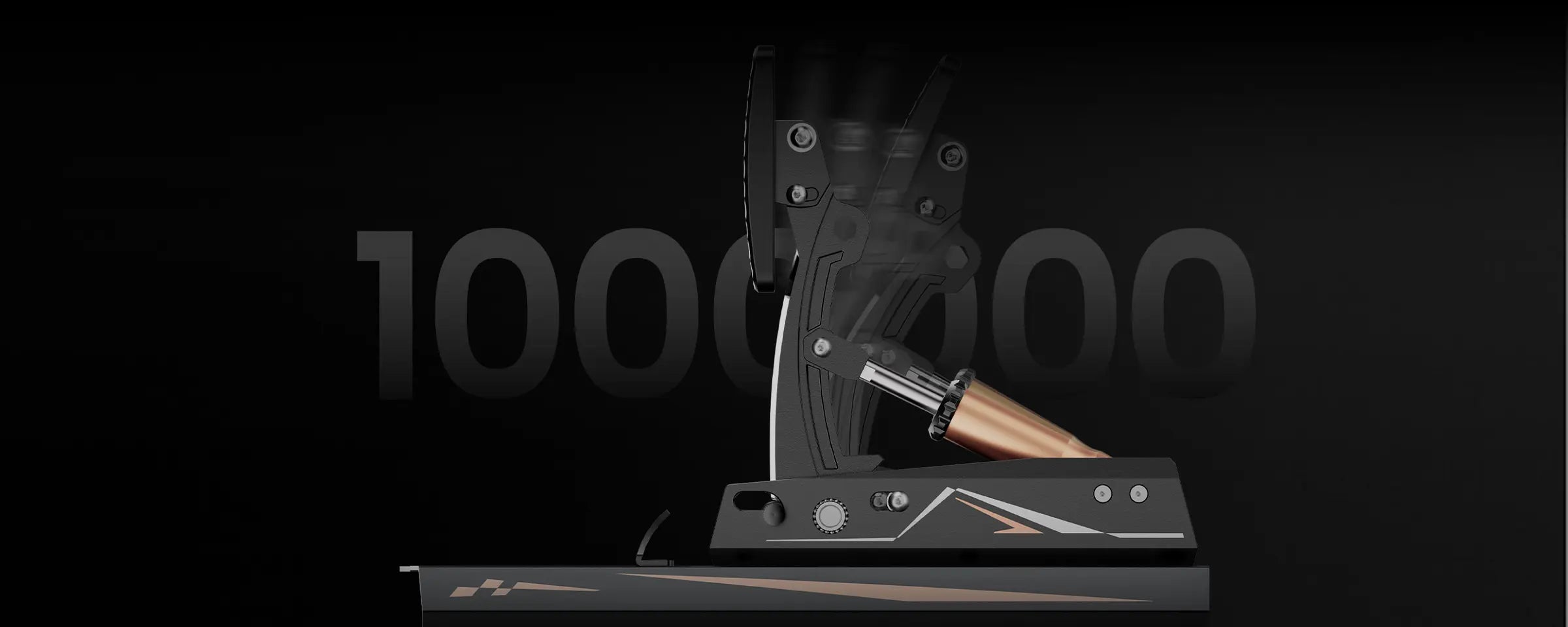

Engineered for Endurance

Each CRP2 pedal is tested to endure over a million presses, ensuring rock-solid durability, consistent performance, and long-term reliability for serious sim racers.

Learn More

SPECS

MOZA CRP2 Load Cell Pedals

Pedal Body Material: Aerospace-grade aluminum alloy
Heel Plate Material: 3K twill carbon fiber
Base Material: High-strength steel
Load Cell Sensor Range: 0–200kg
Brake Sensor: Load cell sensor and angle sensor
Angle Sensor Resolution: 15-bit (32768 PPR)
Brake Pedal Feel: 115 standard adjustments, 1764 optional configurations
Throttle Adjustment: Two spring options with infinite adjustment
Clutch Adjustment: Two spring options with infinite adjustment
Brake Travel Adjustment: 15–20°
Throttle Travel Adjustment: 15–23°
Clutch Travel Adjustment: 15–25°
Pedal Angle Adjustment: 0–15°
Pedal Face Height Adjustment: Up to 30mm
Footrest Adjustment: Up to 30mm
Pedal Curve Adjustment: Adjustable
Real-time Pedal Output Display: Adjustable
Pedal Pressure Engagement Point: Adjustable
Pedal Surface: Biomimetic curved
Inverted Mounting Kit: Optional

User Manual

MOZA CRP2 Pedals Support >

WHAT'S INBOX

MOZA CRP2 Load Cell Pedals (Throttle+Brake) * 1
Toolkit
Warranty Card

FAQs

FAQs - Find out more

How does the CRP2 pedal brake compare to other load cell pedals?

The CRP2 features a rare 200KG load cell sensor, significantly higher than the industry standard. Combined with a 15-bit angle sensor and patented fusion algorithm, it delivers unmatched braking realism and responsiveness — ideal for both competitive sim racers and precision-focused drivers.

Is the clutch pedal realistic?

Yes. The three-stage adjustable clutch mimics real high-performance vehicles. You’ll feel a light initial press, firm resistance in the mid-range, and a quick release at the end — just like in race-prepped manual cars. Spring tension is fully adjustable.

Can I adjust the brake pedal feel to suit different racing styles?

Absolutely. The CRP2 supports 125 standard brake feel combinations using swappable damping blocks of various hardness levels. With the optional Performance Kit, you can unlock 1,764 unique configurations — from road car softness to F1-level stiffness.

Is the CRP2 compatible with non-MOZA setups?

Yes. It connects directly to PC via USB and is fully compatible with all major sim racing platforms and gear, regardless of the brand of your wheel base or shifter.

Can I adjust pedal travel and positioning?

Yes. The CRP2 offers extensive adjustability for pedal angle, travel, spacing, height, and footrest position, ensuring it fits your racing posture and ergonomic needs perfectly.

super good

Al principio eran medios duros y no me gustaban. Pero con el tiempo me acostumbre y me encantan

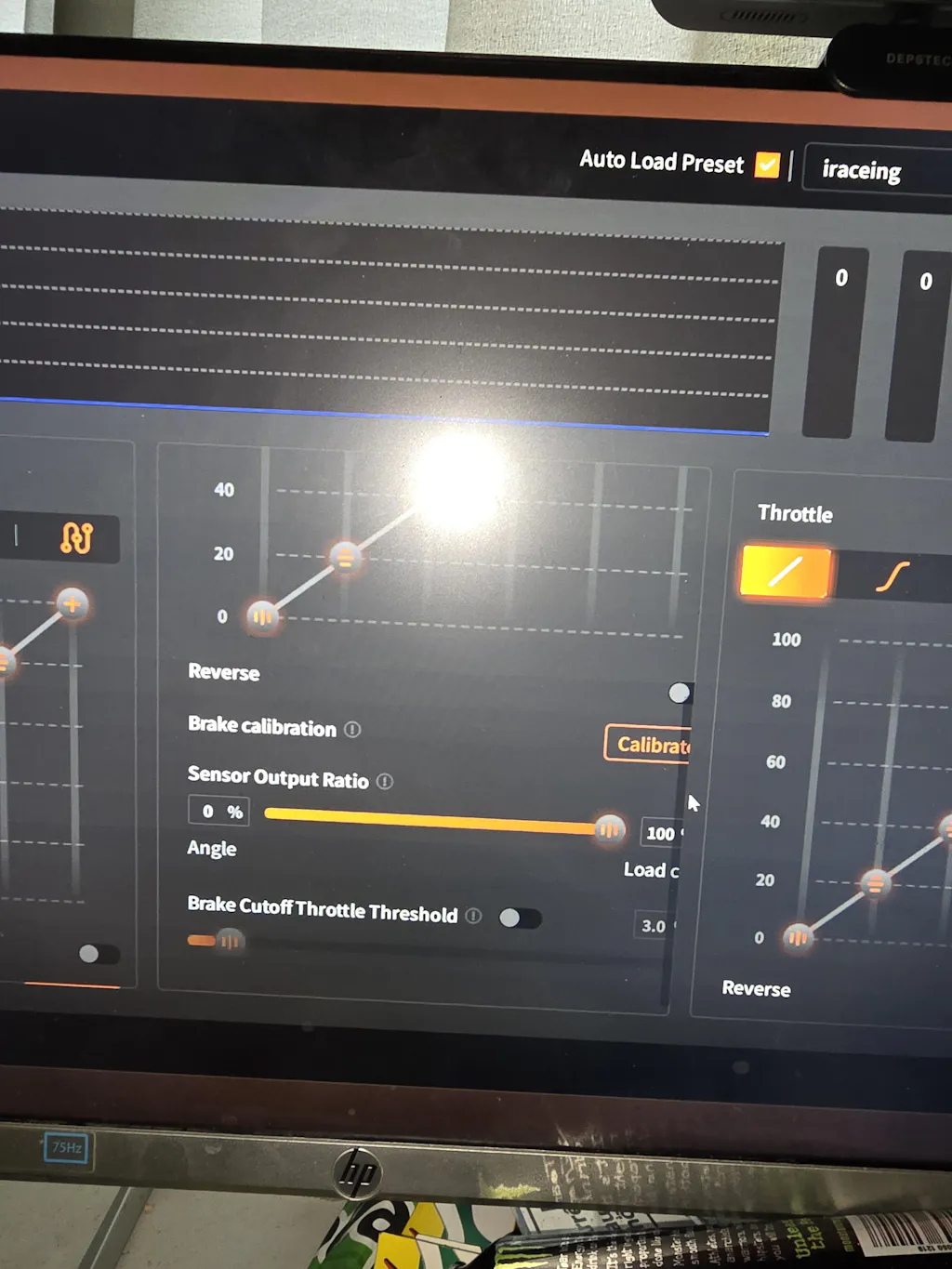

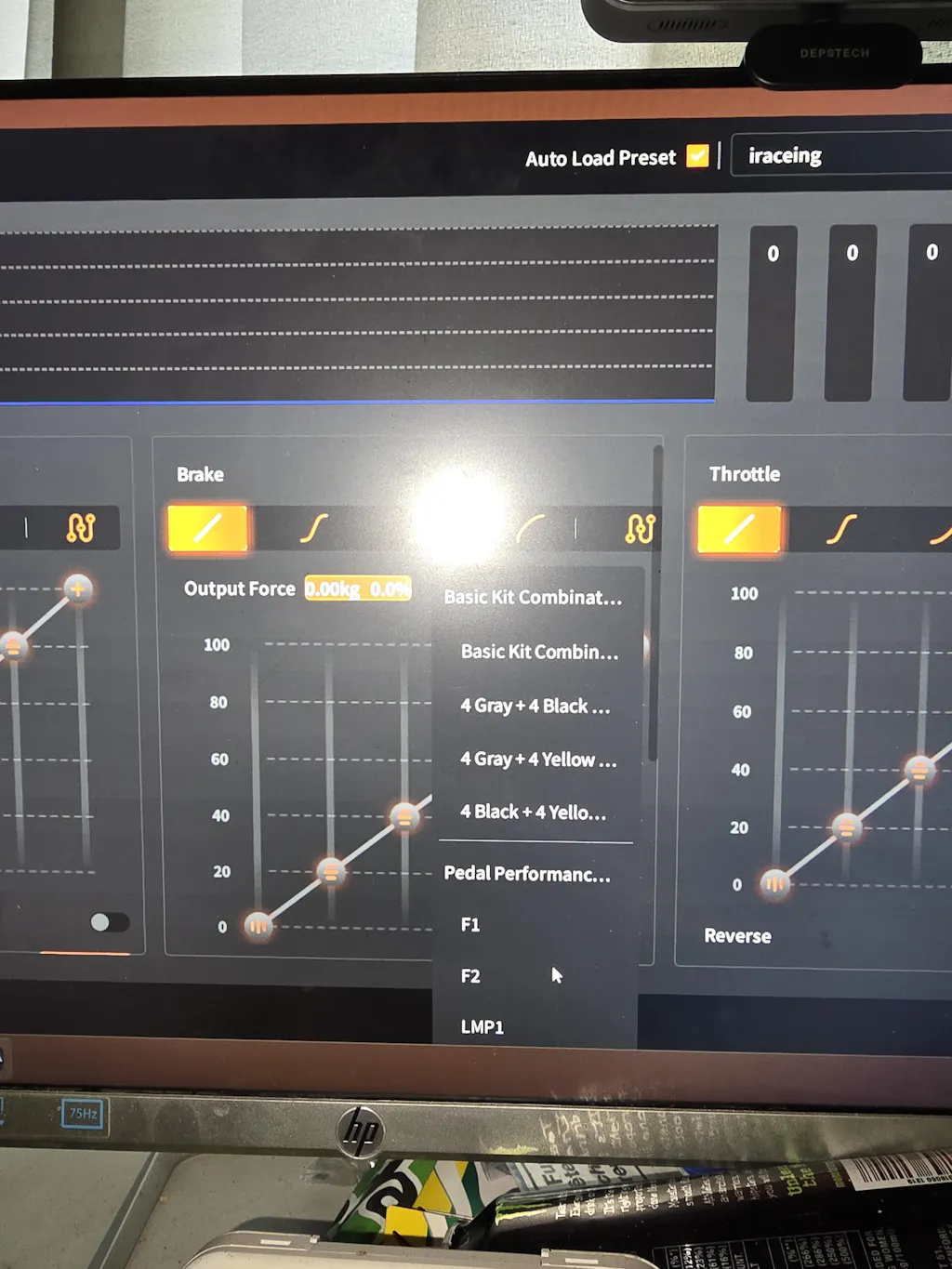

Great, software needs much work. Need info about:
-How much kg of resistance is each spring/damper, so if i want to have 60kg total brake force, which combinations will give me exactly 60kg.
-When i press and hold brake pedal i want to see current applied kg of pressure, not just %
-inverted stand addition was out of stock

price for this ist ok

good looking good working 5star product

Great #2's

A nice up grade from the previous CRP1's. I like the smooth "carbon-fiber" feel in the front of the plate. Now saving up for the massive brake!!
Thanks Moza!!!

Pedals

Pedals are well maid and work real good

Great!

I have used an upgraded SR-P pedals,(reinforced brake and throttle pedals). It was OK.
CRP2 pedals it is a new and way much higher level. It let me feel and control the car more precise. Now, I am really enjoy to drive a Formula PRO in rFactor2.
Great job! Thank you Moza!
